16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers

Categories Tanks Trucks And Trailers
Brand Name: CLW
Model Number: CLW5251
Certification: CCC BV SGS ISO
Place of Origin: Suizhou,China
MOQ: 1 Unit
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Delivery Time: 30 days after receiving deposit
Packaging Details: Naked,Waxed,ro-ro,bulk ship
Capacity: 14t,14ton,14tons,15ton,15t,15tons,16t,16ton,16tons
Tank material: polished stainless steel
Insulation layer: Three layers
Spraying width: 4500mm
asphalt spraying volume: 0.25~3.5L/m2
Working speed: 1.5~7km/h
No. of spraying nozzles: 36
Tank volume: 5cbm,5000liters,6cbm,6000liters
  • Product Details
  • Company Profile

16CBM Bitumen Distribution Tanks Trucks And Trailers Howo 10 Wheel Three Insulation Layers

16CBM bitumen distribution truck Howo 10-wheel bitumen transport truck 16ton


Product Description


1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

2) System of 10tons bitumen distributor truck

  • manual/automatic control of spraying volume and working width,control of single spraying nozzle
  • control in cabin or rear working platform
  • automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
  • Heating system(10~15℃/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control


Specifications of asphalt sprayer Truck


Reference Pictures of bitumen distribution truck


Item No.Parameters
Chassis
Overall Dimension10200x2500x3730 mm
Gross Vehicle Weight25000 kg
Curb Weight16000 kg
Loading Weight8870 kg
Wheel Base4600 +1350mm
Front/rear Tread1500/2277 mm
Approach/Departure Angle23/15 degree
Front Axle7000kg
Rear Axle13000kg
Engine

WD615.47,Weichai Diesel Engine,

watering cooling, four stroke, 6 cylinder in line

Engine horsepower371HP EURO II
Displacement9.726L (Diesel)
Max Driving Speed90 km/h
CabinHW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
Tire12R22.5 (10 pieces+1piece spare tire)
Asphalt Tank16cbm
Outside Material1.2mm Stainless plate
Insulation layer40mm rock wool insulation layer,≤20℃/8h
Asphalt pumpQGB950,950L/min
Hydraulic System
Hydraulic pumpCBQ550-L
Driving Motor05-130-BD31(NING BO TILORMS)
Proportional ValveEFBG-03-160-HF/Taiwan brand
Shuttle ValveShanxi Yuci brand
Overflow ValveShanxi Yuci brand
Control System
Control SystemCLW-32-01/Germany STW
Control MethodComputer control
Smart asphalt nozzle36 pcs intelligent nozzles
Temperature sensor2 pcs from Zhejiang China
Speed sensor2 pcs from Germany
Heating System
Heating methodAutomatic heating by oil
BurnerG20/Italy brand
RadiatorRISEN brand
Heat transfer oil pump40-25-160(Hebei province,China)
Gasoline EngineLUTIAN brand,6kw
Spreading Width6m
Spreading Speed0.3~3.5L/min
Spreading Precision±2%

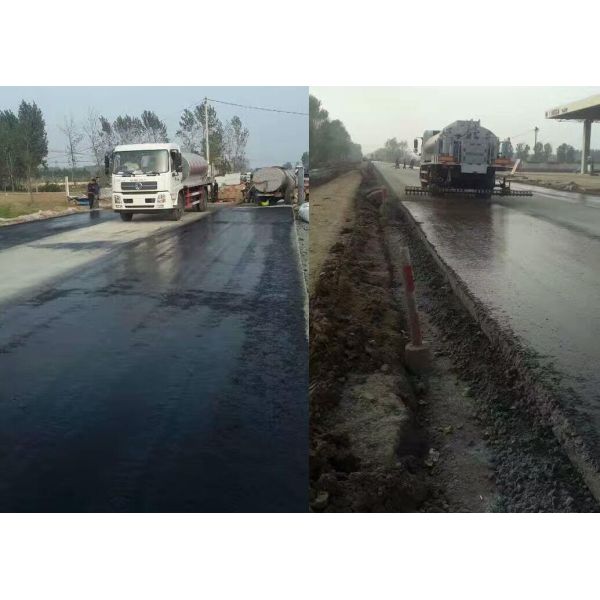

Work Scene of bitumen distribution truck


Key parts of bitumen distribution truck



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ


Q1: What kinds of bitumen distribution truck I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.


Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
