| Categories | LED Wall Light |
|---|---|
| Brand Name: | A.L |
| Model Number: | AL-D1IB |
| Certification: | CE,RoHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 5pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 2,000pcs per day |
| Delivery Time: | Sample and small order 2-4workdays,bulk order 8-12 workdays |
| Packaging Details: | 6pcs/37 x 21 x 22CM/7Kg |
| Power: | 2W,1.8W |
| LED Type: | 5050 SMD LED |
| Beam Angle: | 120° |
| Input: | 100-240VAC |
| IP Grade: | IP65 |
| Material: | Die-casting aluminum |
| Cable Length: | 0.3m or longer |
| Warranty: | Two years |
LED Wall Light Recessed 3mm Tempered Glass Good Heat Dissipation 120°Beam Angle
Quick Details
1. Power:1.8W,2W
2. Voltage:AC100V-240V
3. Size:106mm x 106mm x 65mm
4. Lighting Way:Side-emitting
5. Light Source:5050 SMD LED
6. Housing:Die-casting aluminum
7. Surface Color:Silvery
Technical Datas
| Model No. | AL-D1IB |
| Input Voltage | 100 - 240VAC |
| Power | 1.8W,2W |
| Frond Cover | 106mm x 171m x 65mm |
| Sleeve Size | 98mm x 106mm x H85mm |
| Color | R/G/B/Y/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | 5050 SMD LED |
| Beam Angle | 120° |
| Dimmable | YES |
| IP Grade | IP65 |
| Carton Package Dimension | 37 x 21 x 22CM |
| Carton Package Qty | 6pcs |
| Carton Package Weight | 7kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting aluminum
Front Cover:12# Die-casting aluminum
Glass:Tempered glass,T=3mm
Light Source:5050 SMD LED
Driver:Constant Current Output
Application environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M (High Voltage)
Mounting Sleeve:Zinc-coated steel
Competitive Advantage
1. Die-casting aluminum light housing,good heat-dissipation,long lifespan.
2. High bright 5050 SMD LED,high CRI,beautiful lighting effect.
3. Wall recessed & Ceiling installation,different installation different lighting style.
4. CE & RoHS,Two years warranty,10 years manufacturing and exported experience,Professional quality
control and best after-sales service.
Dimension

Application
Wall lighting,stair lighting,step lighting,garden,park,square,paveway lighting.

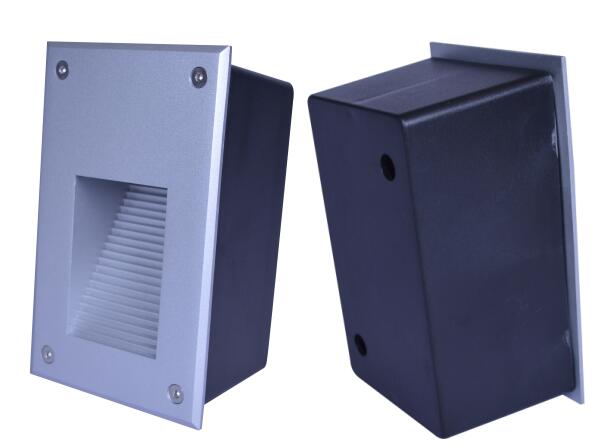

Photoes

Tag
LED step light,LED corner lamp,LED wall light,LED deck light,LED stair light
|
