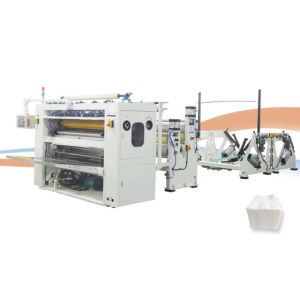

Roots Vacuum Pump Tissue Folding Machine V Folded Pneumatic Loader PLC Control

Categories	Tissue Folding Machine
Brand Name:	ORGINAL
Model Number:	FHM2-6T
Place of Origin:	CHINA
MOQ:	1set
Price:	Negotiable
Supply Ability:	5sets per month
Delivery Time:	60 days
Packaging Details:	wooden pallet,1*20feet container can load 1set
folding type:	V folded
voltage:	380V,50Hz
transmission:	separating motor and timming belt
vacuum pump:	roots vacuum pump
loading:	pneumatic loader
air system:	airtac

Contact Now

Add to Cart

FHM2-6T V Folded Facial Tissue Hand Towel Folding Machine

Features:

Specifications:

MODEL	FHM2T	FHM3T	FHM4T	FHM5T	FHM6T
Max. Width of jumbo roll	520mm	650mm	900mm	1050mm	1300mm
Slitting knife	2sets in back and front	3sets in back and front	4sets in back and front	5sets in back and front	6sets in back and front
Vacuum pump	11kw	11kw	15kw	15kw	18.5kw
Main driving motor powe	3kw	3kw	4kw	5.5kw	5.5kw
Machine size	5×1.6×2m	5×1.75×2m	6×2.1×1.9m	6×2.3×1.9m	6×2.5×1.9m
Machine weight	3000kg	3500kg	4500kg	5500kg	6500kg
Machine speed	500-1000 sheet/min/lane
Max.diameter of jumbo roll	Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll	Ф76.2mm(other sizes can be ordered)
Air pressure	0.8Mpa(user supplied)
