| Categories | LED Dance Floor |
|---|---|
| Brand Name: | SCXK |
| Model Number: | SCXK-P5 |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Place of Origin: | China(Mainland) |
| MOQ: | Negotiations |
| Price: | Negotiations |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Delivery Time: | 7working days after payment |
| Packaging Details: | Wooden and flight case ,it's up to you. |
| Brand name: | Full Color LED Dance Floor |
| Resolution: | 64*32 |
| Module size: | 320*160mm |
| Cabinet size: | 640*640mm |
| Brightness: | ≥7500cd/sq |
| Pixel density: | 40000dots/sq |
| Warranty: | 5years |
| Certifications: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Outdoor options: | P3.91,P4,P4.81,P5,P6,P6.67,P8,P10,P12,P16,P20,P25,P31.25 |
| Application place: | dance floor,stadium,airport,Shopping mall advertising |

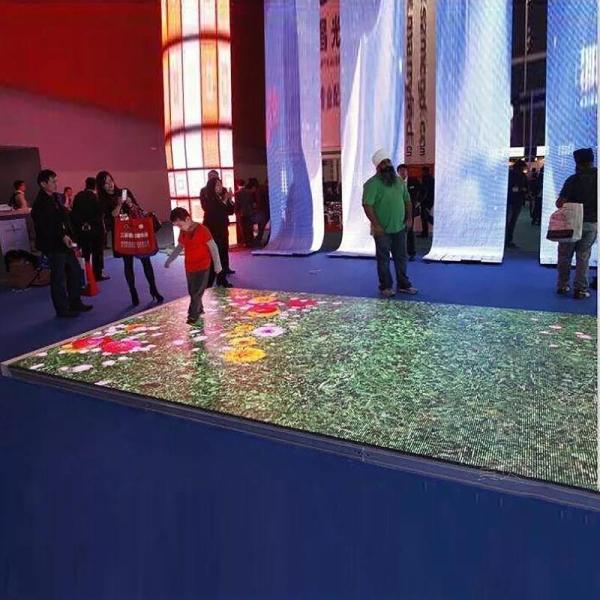

Oudoor P5 LED Dance Floor For Rental HD 64*32Resolution 320*160mm
Module
The quick details:
1, High resolution at 40000pixels/square meter;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/square meter;
4, Power Supply: Meanwell;
5, Control System: Linsn,Nova etc.
Specifications :
| P5 LED Dance Floor | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Shipping details:
Our resoults:



RFQ:
Q1: What's the warranty of your LED Display Screen ? |
Q2: What about your pre-sale service and post-sale service? |
Q3: Whats your payment term? How long it takes to delivery? |
Q4: What's the control system? |
Q5: How can you ensure the led display product quality? |
Our company has been in this field since 2005,has a professional
team and technology,every year the products exported overseas and
are popular among foriegn countries.
Well...in short,welcome to visit our website and inquire us about
more info!!!
|
