| Categories | Theodoor Air Curtain |
|---|---|
| Brand Name: | Theodoor |
| Model Number: | FM-35**-L/Y |
| Certification: | ISO 9001, ISO14001, CE, ROHS,UL,SASO |
| Place of Origin: | China |
| MOQ: | 50 PCS |
| Price: | negotiable |
| Supply Ability: | 10,000 pcs per month |
| Delivery Time: | 25 working days |
| Packaging Details: | Corrugated carton |
| Product Name: | Fashion Wind Air Curtain |
| Application: | For door, entryway |
| Length: | 60cm, 90cm, 120cm, 150cm, 180cm, 200cm |
| Color: | White, Silver, Champagne |
| Air Speed: | 13-16m/s, 16-20m/s |
| Air Type: | Single cooling, has at least 2 motors |
| Supplied: | 120v- 50/60Hz or 220v-50/60Hz |
| Standard: | CE, UL, SASO |

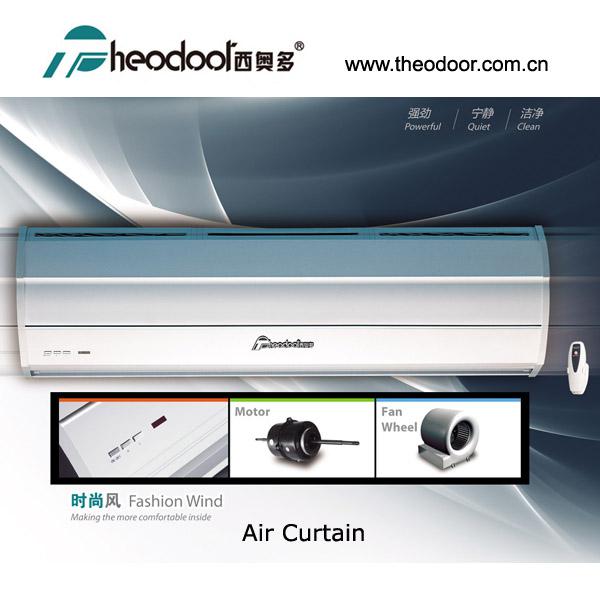

Fashion Theodoor Air Curtain 200 cm Length , Commercial Air Curtain
Cooler
Specifications:
Model | Size(mm) | Volt./ Freq. | Input power(W) | Air flow(m3/h) | Air speed(m/s) | Noise(dB) | N.W (kg) | |||
Hi | Lo | Hi | Lo | Hi | Lo | |||||
FM-3509-L/Y | 900x215x230 | 220v/50Hz | 160 | 130 | 750 | 600 | 13-16 | 50 | 47 | 10 |
FM-3510-L/Y | 1000x215x230 | 230 | 200 | 1100 | 900 | 52 | 49 | 13 | ||
FM-3512-L/Y | 1200x215x230 | 250 | 220 | 1200 | 1000 | 52 | 49 | 13.5 | ||
FM-3515-L/Y | 1500x215x230 | 290 | 260 | 1500 | 1200 | 53 | 50 | 15.5 | ||
FM-3518-L/Y | 1800x215x230 | 380 | 350 | 1900 | 1500 | 55 | 52 | 20 | ||
FM-3520-L/Y | 2000x215x230 | 450 | 420 | 2280 | 1800 | 57 | 55 | 23.5 | ||
FM-4009-L/Y | 900x215x230 | 220v/50Hz | 470 | 440 | 2520 | 2100 | 16-20 | 58 | 56 | 27 |
FM-4010-L/Y | 1000x215x230 | 300 | 270 | 1400 | 1000 | 57 | 54 | 13 | ||
FM-4012-L/Y | 1200x215x230 | 320 | 290 | 1550 | 1100 | 57 | 54 | 13.5 | ||
FM-4015-L/Y | 1500x215x230 | 400 | 370 | 1900 | 1500 | 58 | 55 | 15.5 | ||
FM-4018-L/Y | 1800x215x230 | 500 | 470 | 2300 | 1900 | 61 | 58 | 20 | ||
FM-4020-L/Y | 2000x215x230 | 600 | 570 | 2850 | 2250 | 63 | 61 | 23.5 | ||
Feature:
Fashion design with aluminum body, won’t be rusty and
discoloration;
The body is without visible screw, elegant appearance;
Adopting high-performance motor, safe and reliable; Centrifugal
turbine creates higher air velocity;
Adopting updated remote control with high and low speeds operation;
Suitable for installation in luxury hotel, supermarket chains,
large stadiums and airport terminals and other
entrances of high-grade places etc;
Installation height: 2.8-3.5m or 3-4m.
Fashion air curtain with CE, ROHS and UL approved:
1) Remote / Switch control
2) Two speeds
3) Aluminum cover
4) Centrifugal type airflow
5) Adopting optimized electrical machinery, it operates reliably
and runs safely.
Applications:
Theodoor Air curtain is installed above the entryway of store,
restaurant, hotel…etc. It can effectively
isolate convection indoor and outdoor and keep temperature and
humidity. Especially used in the location
with air conditioner to keep indoor environment and save energy of
refrigeration equipment.
In addition,Air Curtain can prevent the invasion of dust, pest and harmful
fumes from outside. In this way, a comfortable indoor climate is maintained.
Commercial use | Supermarket, shopping malls, department store, small store, hotels,
restaurants, hospital, |
Industrial use | Factory, workshop, warehouse, spinning mill, frozen goods factory,
paint factory, large |
Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments
ensure products performance and
reliability.
Quality control: 100% product performance testing.



|
