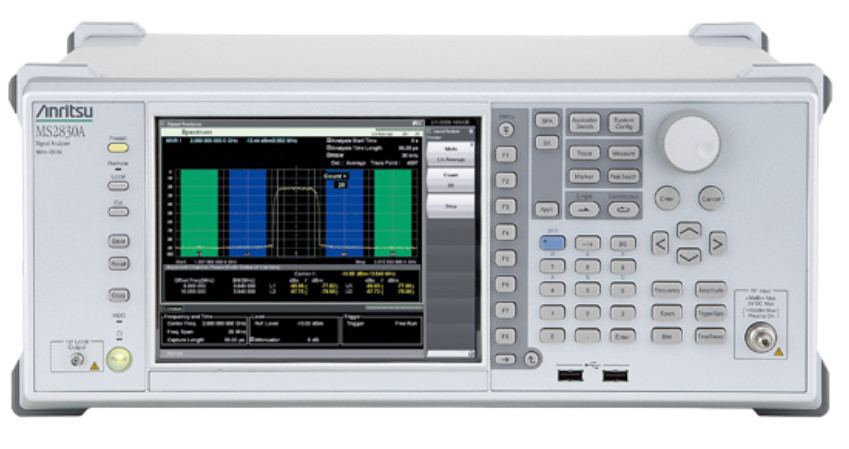

MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned

• 9 kHz to 26.5 GHz/43 GHz frequency range; 43 GHz max. built-in preamp option
• Best-of-class wide dynamic range over 6 GHz
• 325 GHz max. frequency range; built-in 1st local signal output for external mixer
• For wideband down-converter; built-in 1 GHz IF output band
• 10/31.25/62.5/125 MHz analysis bandwidth options (signal analyzer and modulation analysis functions)
• Supports Noise Figure and BER measurement (options)
• Measures 50 GHz to 75 GHz and 60 GHz to 90 GHz frequency ranges in combination with either High Performance Waveguide Mixer MA2806A or MA2808A set, respectively

The Microwave Spectrum/Signal Analyzers MS2830A-044 and MS2830A-045 offer frequency coverage to 26.5 GHz and 43 GHz for unmatched value in their class. They are compatible with Anritsu’s External Mixer MA27xxC series, enabling millimeter-wave spectrum analysis to 325 GHz. Moreover, with excellent dynamic range, they also support the High Performance Waveguide Mixer options MA2806A and MA2808A for spectrum analysis of millimeter-wave wideband signals.

• Low Displayed Average Noise Level (DANL) and high Third Order Intercept (TOI) enable measurements requiring wide dynamic range
• Wide variety of built-in measurement functions, including channel power, occupied bandwidth, adjacent channel leakage power (ACLR), spurious emissions, and much more
• Optional wideband vector signal analysis to 26.5 GHz/43 GHz enables frequency vs. time, phase vs. time, spectrogram, and CCDF measurements
• Comprehensive vector modulation analysis of proprietary and standard signals to 26.5 GHz/43 GHz, including LTE/LTE-Advanced, W-CDMA, GSM/EDGE, TD-SCDMA, CDMA2000, 802.11a/b/g/j/n/p, and ZigBee
• Noise Figure Measurement Function option MS2830A-017 and Microwave Preamplifier option MS2830A-068 enable precise noise figure measurements to 26.5 GHz/43 GHz
• Microwave Preselector Bypass option MS2830A-067 enables use of external equipment to analyze wideband signals with bandwidths to 1 GHz
