6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck

6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck

6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck
6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck
Categories Heavy Cargo Trucks
Brand Name: CIVL
Model Number: CIVL
Certification: ISO,CCC
Place of Origin: China
MOQ: 1
Price: US $40,000-44,500 / Set
Payment Terms: L/C, T/T
Supply Ability: 300 UNITS PER WEEK
Delivery Time: Within 35 days
Packaging Details: NUDE
BRAND: BEIBEN
MODEL: 2638
Wheel base: 3450+1450mm
Displacement: 9.726L/Diesel
Emission stantard: Euro III EGR
Contact Now
  • Product Details
  • Company Profile

6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck

6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck

Features:
Packaging Details
wax-coated on roro vessel for Beiben truck shipping
Delivery Time
Shipped in 30 days after payment

Specifications:

2638S /6×4/3450+1450/Long Cab/LHD
Dimension6935*2495*3340mm
Approaching angle/Departure angle20/64°
Overhang(front/rear)1410/625mm
Wheel base3450+1450mm
Max speed100km/h
Curb weight9200kg
Max towing weight39670kg
Max loading on fifth wheel, Permitted(kg)15670kg
Slope climbing capabilityMax.40%
EngineModelWD6115.38, Euro II, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement9.726L/Diesel
Stroke126/130mm
Max. power309/2200 (kw/rpm)
Max.torque1750/1300-1400(Nm/rpm)
Emission stantardEuroⅢ
Fuel tanker capacity400L
Clutch430, Single dry frictional disc,Hydraulic boosting
Gearbox12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer
Gear ratio of gear box15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension systemFrontNon-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
RearNon-free standing stablization spring, balance suspension system, 13pcs
Brake systemService brakeBrake gap can be adjusted automatically, double circulation air brake system
Assistant brakeEngine exhaust brake
Park brakePotential springs pressing on middle and rear wheels
Steering systemTAS85,whole circulation in ball, hydraulic booster
FrameFish belly shape, variable width, variable sections
ModelJOST 90 single direction
Height of fifth wheel(mm) (unload)1410
Radius of front gap (mm)2300
Radius of rear slew (mm)2600
Front axle (Mercedes Technology)Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre12.00-R20
Electrical systemBattery2X12V/135Ah
Generator28V-35A
Starter5.4Kw/24V
CabinNG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C


Photo details:


Quality Inspection:

Service:

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.

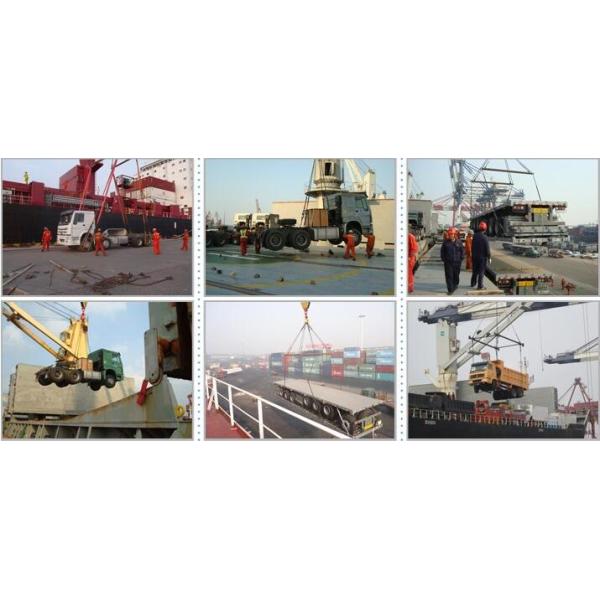

Shipping:
