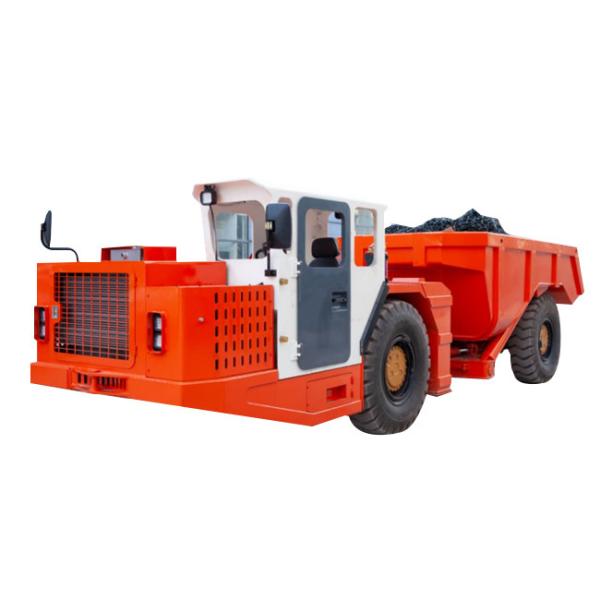

CE Mini Articulated Dump Truck Heavy Articulated Vehicle 12 Tons XTUK-12

Categories Underground Articulated Truck
Brand Name: Beijun
Model Number: XTUK-12
Certification: CE,ISO
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Delivery Time: 7 days
Packaging Details: Customized packaging
Unladen Vehicle Weight (UVW): 14500kg
Full load operating weight: 27500kg
Oscillation Angle: ±7°
Grade ability (full load): ≥14°
Torque converter: DANAC270
Transmission: DANA R32000
Engine/power: DEUTZ BF4M1013EC / 115KW
Overall dimension (tramming) (L*W*H): 8250×1980×2300 mm
  • Product Details
  • Company Profile

CE Mini Articulated Dump Truck Heavy Articulated Vehicle 12 Tons XTUK-12

XTUK-12 Articulated Dumping Truck With A Carrying Capacity Of 12 Tons


No.Itemdata
1Volume of standard bucket6.0 m³
(SAE heaped)
2Rated Payload12000kg
(tramming capacity)
3Unloading (Dumping) angle of dump box70°
4Approach angle15°
5Unladen Vehicle Weight (UVW)14500kg
6Full load operating weight27500kg
7Oscillation Angle±7°
8Grade ability (full load)≥14°
9Min. Steering Radius4420±150mm(inner)
7350±150mm(outer)
10GearsHydraulic power shifting
Forward: 4 gears
Reverse: 4 gears
11Torque converterDANAC270
12TransmissionDANA R32000
13Axles4-wheel Rigid axles, with fully enclosed, multiple wet discs brakes at each wheel end. SAHR.
14Brakes systemspring apply hydraulic release
15Engine/powerDEUTZ BF4M1013EC / 115KW
16Overall dimension (tramming) (L*W*H)8250×1980×2300 mm

Cheap CE Mini Articulated Dump Truck Heavy Articulated Vehicle 12 Tons XTUK-12 for sale
