28.32 Gear Motor Reducer 0.25KW R37 DRN71MS4 BE03 FB4.2 18kg

▶▶▶Description:


Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.

▶▶▶Features

RX series (single-stage)
•Highly efficient helical gear units in 6 sizes
•High output speed, up to 830 Nm
•Gear unit ratios up to i = 8.65
•Available in foot or flange-mounted design
R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to 15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash


Product data:

▶▶▶Areas of application
RX series (single-stage)
◆Roller conveyors ◆Belt conveyors ◆Chain conveyors
R series (two-stage and three-stage)
◆Rotary tables ◆Pumps and fans ◆Waste water and sewage treatment plants
◆Fans ◆ Roller conveyors ◆ Belt conveyors
◆Chain conveyors ◆Corner transfer units

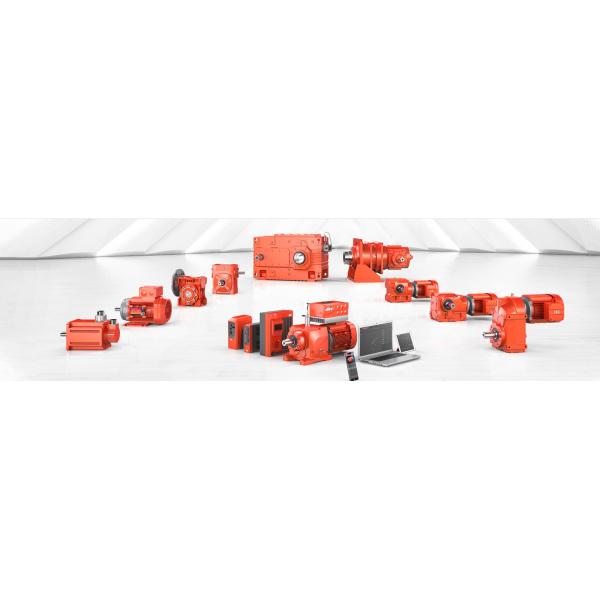

▶▶▶ SEW reducer R series helical gear reducer

Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box

out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW

SIZE:R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167
RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107
RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107

RS37,RS47,RS57,RS67,RS77,RS87,RS97,RS107,RS137,RS147,RS167
RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167

Company Introduction

Shenzhen Jichuangyu Intelligent Technology Co., Ltd. is headquartered in Shenzhen, focusing on the reducer industry, the company's main products are gear reducer, AC and DC reducer motor, products are widely used in construction machinery, intelligent logistics and warehousing, industrial automation, metallurgy, environmental protection, new energy, food light industry, port machinery, resource mining and other general machinery industry fields. Nowadays, we focus on the driving field and implement the core values of "customer-centric, striver-based, solidarity and cooperation, pragmatic innovation, fairness and justice, and shared success" from top to bottom, with altruism in mind, in order to form a community of interests between employees, customers and partners.

Gear motor is conveying machinery, water conservancy machinery, food machinery, packaging machinery, medical equipment, environmental protection equipment, printing machinery, textile machinery, glass processing machinery, woodworking machinery, mining machinery, film and television equipment, beauty equipment, plastic machinery and equipment, mechanical equipment, logistics, loading and unloading equipment, painting equipment, metallurgical equipment, communication equipment, Fishery equipment, office equipment, parking equipment, mold processing equipment, hotel equipment, large amusement equipment, stone equipment, Marine equipment, etc., is the industry automation, semi-automatic mechanical equipment ideal supporting products.
