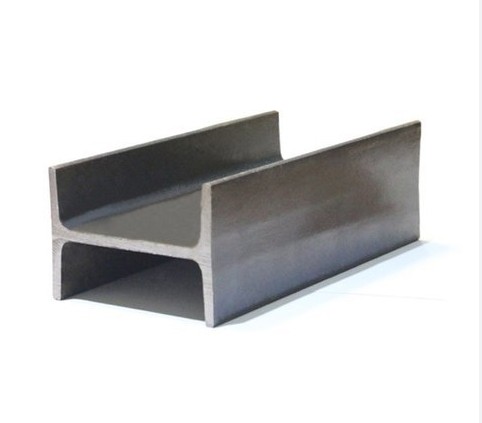

American Standard Stainless Steel Profiles Wide Flange Beams W12x19

Categories	Stainless Steel Profiles
Brand Name:	PUXIANG, LAISTEEL
Model Number:	W12
Certification:	ISO,CE
Place of Origin:	China
MOQ:	3 ton
Price:	US$515-US$615
Payment Terms:	T/T, T/T + L/C
Supply Ability:	500ton/month
Delivery Time:	10-15 working days after receiveing advance payment
Description:	American Standard Wide Flange Beams
Standard:	ASTM A572，Gr.60
Size:	W12x19
Length:	6m,12m or as required
Applications:	Building homes,Freeways,Overpasses etc.
Package:	Standard Export Package

Contact Now

Add to Cart

Product Details
Company Profile

American Standard Stainless Steel Profiles Wide Flange Beams W12x19

American Standard Wide Flange Beams , W Beam, W12x19

Wide Flange Beam Dimensions Chart for sizes, dimensions and section properties of steel wide flange beams. Wide flange beams are designated by the letter W followed by the nominal depth in inches and the weight in pounds per foot. Thus W12 × 19 designates a wide flange beam with a depth of 12 inches and a nominal weight of 19 pounds per foot.

Metric		Imperial		Depth mm	Width mm	Thickness mm	Web Thickness mm
W100 x	19	W4 x	13	106	103	8.8	7.1
W130 x	24	W5 x–	19	127–131	127–128	9.1–10.9	6.1–6.9
W150 x	13–37	W6 x–	8.5–25	148–162	100–154	4.9–11.6	4.3–8.1
W200 x	15–100	W8 x–	10–67	200–229	100–210	5.2–23.7	4.3–14.5
W250 x	18–167	W10 x–	12–112	251–289	101–265	5.3–31.8	4.8–19.2
W310 x	21–342	W12 x–	14–230	303–382	101–328	5.7–52.6	5.1–32.6
W360 x	33–1086	W14 x–	22–730	349–569	127–454	8.5–125	5.8–78
W410 x	39–149	W16 x–	26–100	399–431	140–265	8.8–25	6.4–14.9
W460 x	52–286	W18 x–	35–192	450–517	152–291	10.8–44.4	7.6–24.4
W530 x	66–248	W21 x–	44–166	525–571	165–315	11.4–34.5	18.9–19
W610 x	82–262	W24 x–	55–176	599–641	178–327	12.8–34	10–19
W690 x	125–289	W27 x–	84–194	678–714	253–356	16.3–34	11.7–19
W760 x	134–350	W30 x–	90–235	750–795	264–382	15.5–38.1	11.9–21.1
W840 x	176–359	W33 x–	118–241	835–868	292–403	18.8–35.6	14–21.1
W920 x	201–446	W36 x–	135–302	903–933	304–423	20.1–42.7	15.2–24
W1000 x	222–493	W40 x–	149–327	970–1036	300–308	21.1–54.1	16–30

Chemical Composition of ASTM A572 Steel

Chemical Alloy	Grade 42	Grade 50	Grade 55	Grade 60	Grade 65 ≥ ½” thick	Grade 65 over ½” to 1 ¼” thick
Chemical Alloy	Grade 42	Grade 50	Grade 55	Grade 60	Grade 65 ≥ ½” thick	Grade 65 over ½” to 1 ¼” thick
C	0.21%	0.23%	0.25%	0.26%	0.26%	0.23%
Mn	1.35%	1.35%	1.35%	1.35%	1.35%	1.65%
P	0.03%	0.03%	0.03%	0.03%	0.03%	0.03%
S	0.03%	0.03%	0.03%	0.03%	0.03%	0.03%
Si	0.15-0.40%	0.15-0.40%	0.15-0.40%	0.40%	0.40%	0.40%
