●Vehicle positioning monitoring terminal, traffic recorder
●Car tracker, motorcycle tracker, etc
●Portable navigation
●Walkie-talkies
●Meteorological detection
| Categories | GPS Module |
|---|---|
| Brand Name: | OTW |
| Model Number: | WT-62-TD |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | US $2.4 - 11.80/ |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | Above US$100 Million |
| Delivery Time: | 7-10working days after receiving the payment |
| Application: | Positioning, surveying and mapping, etc |
| Type: | GNSS Module |
| Country of Origin: | CHINA |
| Brand: | OTW |
| Operating mode: | GPS+GLONASS+GALILEO+ BDS |
| Baud rate: | 4800bps-921600bps,Default9600bps |
| Update frequency: | 1Hz-10Hz(default 1Hz) |
Smart Gps Tracker & Locator Low Power Gps Devices Use Gps Modules
Product descriptions from the supplier
| Module performance | |
| Chip | WT-62-TD |
| Receiver type | BDS:B1I+B1C |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 56 |
| Sensitivity | Tracking: -163dbm Capture: -160dbm Cold start -147dbm |
| Cold start | Average 28seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal Position : average, SBAS < 3m |
| 18Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -10 Hz |
| Port | |
| Port | 2 URAT
|
| Physical property | |

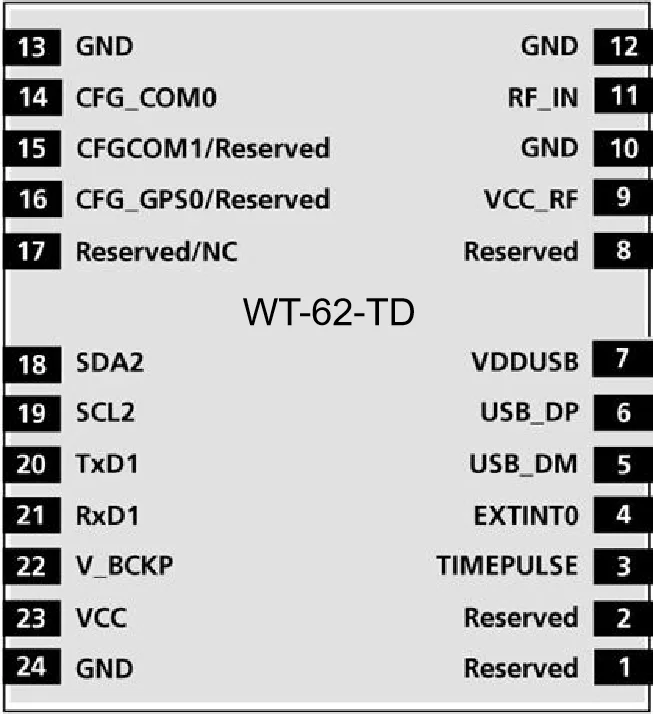

| Type | 24 pin stamp holes |

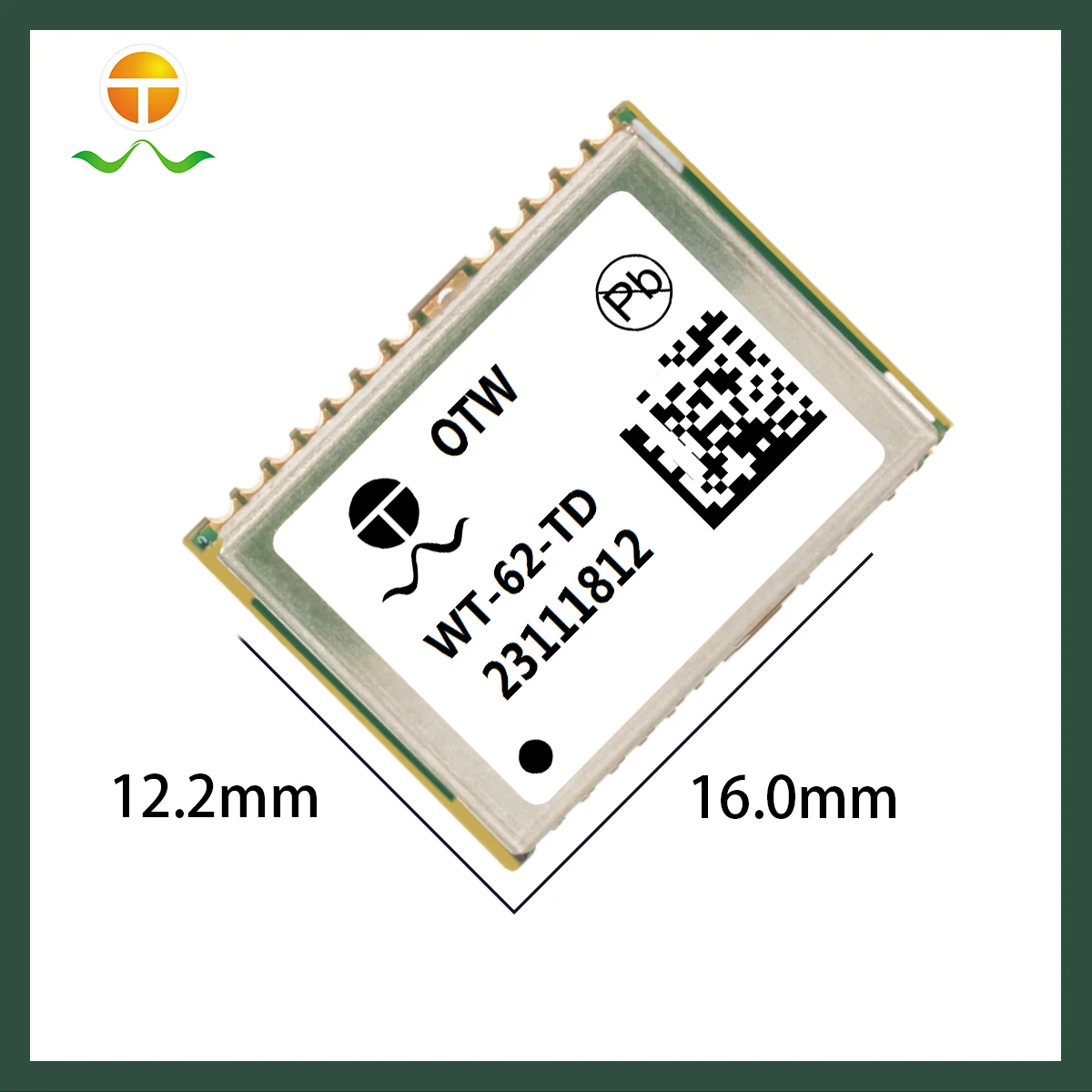

| Size | 16.0mm*12.2mm*2.4mm(+/- 0.5mm) |
| Power supply | |
| Voltage | 1.8V~3.6V |
| Power Consume | Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA |
| Oerating Environment | |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
|
