| Categories | LPG Tanker Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | ASME,CCC,SGS,BV |
| Certification: | CLW9522 |
| Place of Origin: | Suizhou, China |
| MOQ: | 1 Unit |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units/Month |
| Delivery Time: | 20~30 days after receiving deposit |
| Packaging Details: | Naked Package,Bulk Ship,Roll-Roll |
| Loading capacity: | 4t 4ton 4tons 5t 5tons 5ton 5mt 4mt |
| Material: | Carbon Steel Q345R |
| Filling Medium: | Propane,butane |
| Design Pressure:: | 1.61Mpa |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar |
| Level Gauge: | Manual Rotation,Float Ball,Rochester |
| Shell Thickness: | 10mm |
| End Thickness: | 10mm |
| Corrosion Allowance: | 1 mm |
| Usage: | Cylinder refilling |
| LOGO: | As per request |
| Life Time: | 20 years |

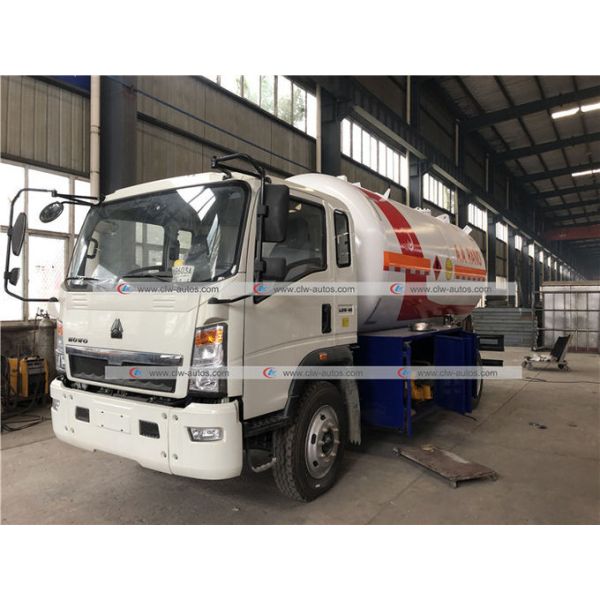

HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
Product Description
1. Truck Brand of LPG Bobtail Truck : Howo,optional for dongfeng,faw,isuzu,foton,shacman,JAC and other brands
2. Tank Size of LPG Bobtail Truck : 6,000liters ,8000liters, 10,000liters, 15,000liters, 20,000liters
3. Function of LPG Bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

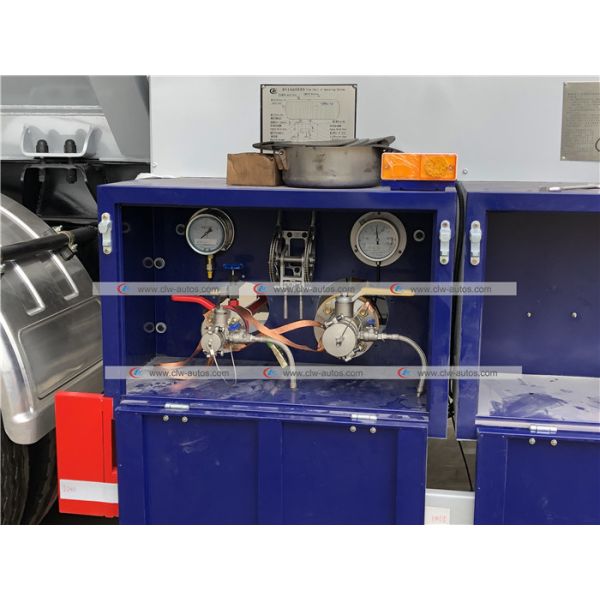

4. Refiling System of LPG Bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Specification of lpg storage tank
1. Specification of 10CBM Upper Tanker | |||
| Item | Unit | Parameter | |
| Thickness of Shell | mm | 10.0 | |
| Thickness of Endplate | mm | 10.0 | |
| Corrosion Allowance | mm | 1.0 | |
| Fact cubic meters | cbm | 10cbm(10,000L) | |
| Loading capacity | kg | Approx.4750 kg | |
| Working temperature | ºC | -40/+55 oC | |
| Tank material | mm | Carbon Steel Q345R(Pressure Vessel Steel) | |
| Manhole | mm | DN450(18 inch) | |
| Safety Valve | mm | DN50(2 inch) | |
| Liquid Line | mm | DN50(2 inch) | |
| Gas Line | mm | DN50(2 inch) | |
| 2. Specification of Chassis | |||
| Condition | New condition/Left hand drive/4x2 | ||
Main details | Brand and Model | SINOTRUK HOWO | |
| Wheelbase(mm) | 3950/4200/4400/4500/4700/5000/5200 | ||
| Front/Rear overhang(mm) | 1205/2310 | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 90 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 8.25R20/9.00-20/9.00R20/10.00-20/10.00R20 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand and Model | Optional | |
| Fuel type | Diesel | ||
| Emission standard | Optional | ||
|
