| Categories | Wire Mesh Weaving Machine |
|---|---|
| Brand Name: | Jinglian Machinery |
| Model Number: | JWJ-2019 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | 1000 usd/set |
| Payment Terms: | T/T |
| Supply Ability: | 15 set/week |
| Delivery Time: | 10-30 work days |
| Packaging Details: | Plastic film outside |
| Height: | 1.6m |
| Width: | 1600mm |
| Speed: | 90r/min |
| Wire diameter: | 0.04mm |
| Raw material: | Stainless wire |
| Mesh Size: | 100 meshes |

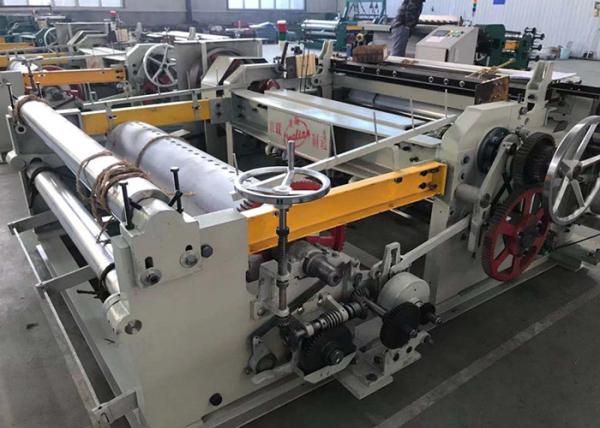

1600 Height Shuttleles Griper CNC Control Wire Mesh Weaving Machine Wire Mesh Loom
1 Full-Automatic stainless steel weaving loom , wire mesh weaving machine:
Standard width: 1000mm,1300,1600,2000mm
Wire diameter range:0.03-0.3mm
Weaving Density: Plain weave square hole 40-400 mesh, Twill weave<600 meshes
Speed :100(120 special design) RPM
Frequency converter step-less speed regualton, the actual speed depends on the weaving width and detailed sepcifications
Basic tension: 15000N/m
Single electromotor driving
Automatic compensation of winding and was feeding
It stopped automatically when the latitude and longitude is cut off
Be suitable for soft ferrous metal, stainless steel, flexible brass
Five kinds of arbitrary combination
2 :Instruction of the stainless steel wire mesh loom
| Standard Width | 1000mm,1300mm |
| Wire diameter | 0.03-0.3mm |
| Weaving Density | plain weaving, twill weave |
3: The weaving wire types:
Stainless steel wire
Iron Wire
Copper wire
Brass Wire
Phosphor copper
Aluminum
Platinum
And other non-metal wire such as polyester, Plastic , etc
4 :The details of the stainless steel wire mesh weaving machine
|
