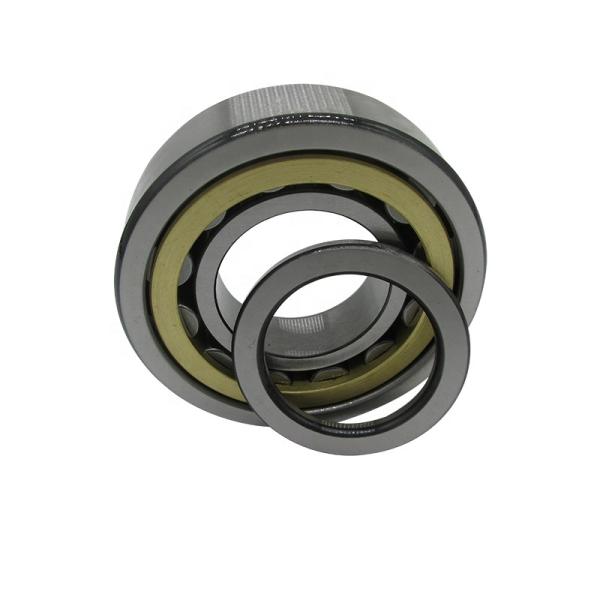

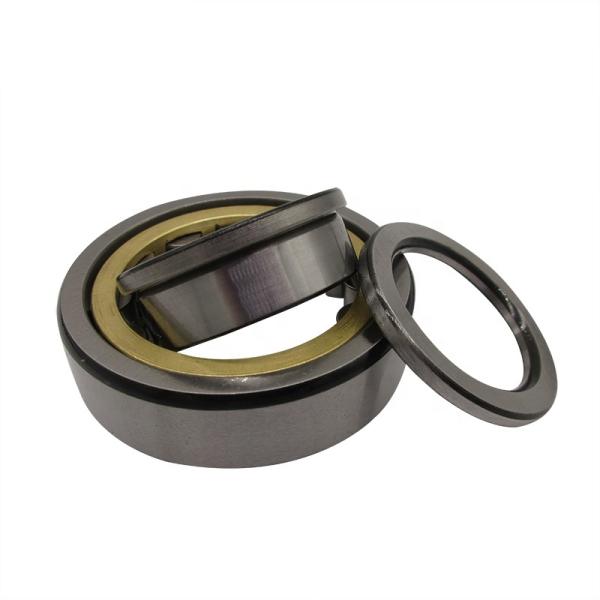

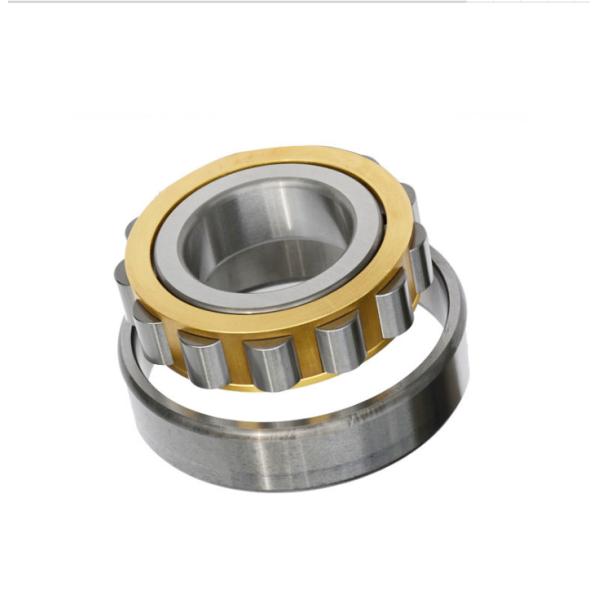

Chrome Steel NUP307E Cylindrical Roller Bearing Thickness 21mm With Nylon Cage

Chrome steel bearing NUP307E cylindrical roller bearing NUP307

Types of cylindrical roller bearing:

N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.

NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).

NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.

RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.

NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.

NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.

Cylindrical Roller Bearing Model Number:

Shaanxi Fortune Industries Co.,ltd located in Xi’an of the oldest city in China. We have experience for over 15 years, As a professional exporter in Ball & Roller Bearings and Auto Parts on standard and nonstandard, our success is based on:

High Quality Bearing at the Good Price
In this competitive world economy it is critical that we provide you with a bearing that meets your different requirements at an affordable price. We can offer bearings at multiple price points from hundreds of factories established stable relations with us in China.

Experienced Staff
We target specific automotive industries, learn about their particular uses and bearing needs, and supply exactly what is required. We have specialists on staff who understand these markets and can respond promptly. we would be glad to create most suitable solution for your needs.

Bearing in Variety
You will find thousands kinds of bearing on standard on our Website: www.sft-bearings.com, we trust you can choose bearing you required. If you can not identify your bearing, Just tell us the dimensions we offer bearing on non-standard.

Professional Service
Our technical team are experienced in automobile bearings, industry bearings, We are able to provide support on bearing selection, design optimization, product development, bearing mounting, bearing maintenance, lubrication and etc.

Quality control system

In 2011, We have been awarded Quality Management System Certificate No. 00111Q25911R0S / 6100 for compliance with the standard ISO9001 : 2008　＆　GB/T 19001 - 2008 apply in Export of Bearing and Auto Parts.

Bearings and More
In addition to ball and roller bearings and auto parts, we also carry Linear Motion, Roller Chain, Motorcycle Sprocket and more. Please view our website.

Today, All of our products have been exported to dozens of countries and regions all over the world, such as Europe, America, southeast Asia, middle east, Africa etc. and products are used in a broad range of applications, including automobiles, railways, steel industry, motorcycle, agriculture machine, wind turbines, papermaking machine, office equipment, machinery tools etc.

We do best spare parts and transmission parts for you!
