| Categories | NEW Concrete Pump |
|---|---|
| Place of Origin: | Hunan, China |
| Brand Name: | ACHIEVE |
| Certification: | EXPORT |
| Supply Ability: | 5 Unit/Units per Month |
| Price: | $25,999.00 - $34,999.00/Units |
| Applicable Industries: | Construction works , Concrete Pumping |
| Showroom Location: | None |
| Condition: | New |
| Power Type: | Diesel |
| Weight: | 4500KGS |
| Dimension(L*W*H): | 4500X2000X2890 |
| Warranty: | 1 Year |
| UNIQUE SELLING POINT: | Easy Maintenance |
| Max. vertical conveying distance: | 100M |
| Max. horizontal conveying distance: | 500M |
| Productivity: | 40M3/H |
| Machinery Test Report: | Not Available |
| Video outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year |
| Core Components: | Bearing, Pump |
| Brand: | ACHIEVE |
| Engine: | WEICHAI |
| Engine Power: | 56KW |
| After Warranty Service: | Video technical support, Online support, Field maintenance and repair service |
| Local Service Location: | None |
| After-sales Service Provided: | Video technical support, Field installation, commissioning and training, Online support |

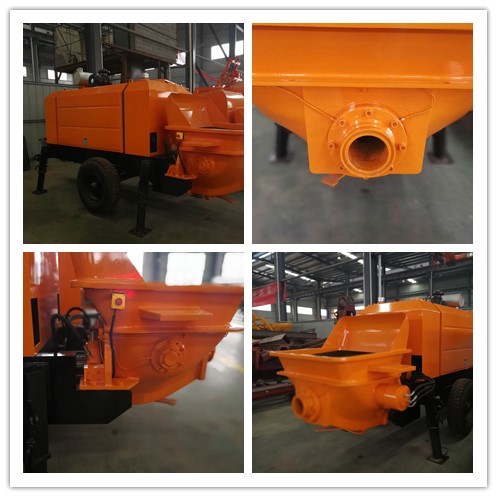

AI-40JBC Trailer-Mounted Concrete Mixer Pump JBC40/450
AI-40JBC Trailer-mounted Concrete Mixer Pump Mobile Self loading Concrete Pump with Mixer Cement Mixer
JBC40/450 Concrete Mixer Pump
Technical Data Sheet
| NO.1 | ITEM | SPECIFICATION |
| 1 | Model | AI-40JBC - JBC40/450 |
| 2 | Dimension | 4500mm X 2000mm X2890mm |
| 3 | Max.Output | 40M3/H |
| 4 | Max.Pumping Pressure | 10Mpa/100Bar |
| 5 | Diesel Engine | WEICHAI 56KW |
| 6 | Main Pump | KAWASAKI 140CC |
| 7 | Hydraulic Oil Cylinder Stoke | 1200mm |
| 8 | Hydraulic Oil Cylinder DN | 100/70mm |
| 9 | Concrete Cylinder Stoke | 1200mm |
| 10 | Concrete Cylinder DN | 180mm |
| 11 | Feeding Height | 1500mm |
| 12 | Hydraulic System Type | Open Loop |
| 13 | Control System | Manual/Remote Control |
| 14 | Cooling System | Air Cool |
|
