| Categories | POS Barcode Scanner |
|---|---|
| Brand Name: | Luckydoor |
| Model Number: | D20 |
| Certification: | CE FCC Rohs |
| Place of Origin: | Made in China |
| MOQ: | 1pc |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50K-60Kpcs / month |
| Delivery Time: | 1-3 working days |
| Packaging Details: | Single standard packing box and carton |
| Scan type: | CMOS |
| Interface: | USB |
| OS: | Windows ,Android,Linux |
| Materials: | ABS+PC |
| Private mold: | yes |
| After sale service: | 1 year |
| Scan barcodes: | 1D 2D QR |
| Resolution: | 4mil |
Handheld USB 1D/2D Barcode Scanner ,QR Code 2D Handheld Barcode Reader For Retail ,Point Of Sales
Product Description:
With a design that unifies ergonomics with slim, this handheld 2d barcode scanner ensures the comfort and productivity of its operator and also meets modern-day aesthetic standards.The 1D/2D handheld barcode scanner provides a cost-effective data capturing solution that allows users to enjoy the capabilities of a 2D barcode scanner, for the price of a 1D barcode scanner.
Product Features:
• High-performance CPU that captures high-density, high-volume, and distorted barcodes on paper or screen
• Cost efficient (2D scanning capabilities for the price of a 1D scanner)
• Can plug directly into any Point of sales machine or other PC
• Support multiple languages and custom prefix & suffix
Product Specification:
| Light Sources | 617nm LED Aimer, White LED | ||||||
| Supported Symbologies | 1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese | ||||||
| Scan Type | Image CMOS | ||||||
| Resolution | 640*480 | ||||||
| Scan Method | Manual/Continuous/Automatic scanning | ||||||
| Scan angle | Yaw 60°,Rotation 360°,Pitch 60° | ||||||
| Precision | ≥4mil | ||||||
| Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) | ||||||
| Error Rate | Less than 1/5million | ||||||
| Interface | USB-HID, USB-COM, RS232 | ||||||
| Physical Parameters | |||||||
| Dimensions | 70.5mm*86.2mm*165.2mm | ||||||
| Weight | 100g | ||||||
| Material | ABS+PC | ||||||
| Cable Length | 2m | ||||||
| Environmental Parameters | |||||||
| Operating Temperature | -20℃ ~ 50℃ | ||||||
| Storage Temperature | -40℃ ~ 70℃ | ||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
| Ambient lighting | 0~100000LUX | ||||||
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | ||||||
| Electrical Parameters | |||||||
| Working Voltage | DC5V±5% | ||||||
| Operating Current | 120mA | ||||||

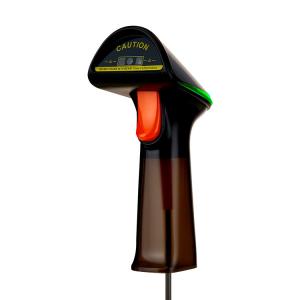

Product Pictures:
Product Application:
Point of sales
Public library
Transportation and logistic
Supermarkets
Shopping mall
Convenience stores
FAQ:
1, What kind of interface this 2d handheld barcode scanner support ?
It is fixed cable ,so it is only support USB ,but RS-232 interface is available
2, Does this handheld 2D barcode scanner read barcodes from mobile screen?
Yes ,it can read both paper and mobile screen barcodes
3, Are you a manufacturer?
Yes ,our factory located in guangzhou ,China
|
