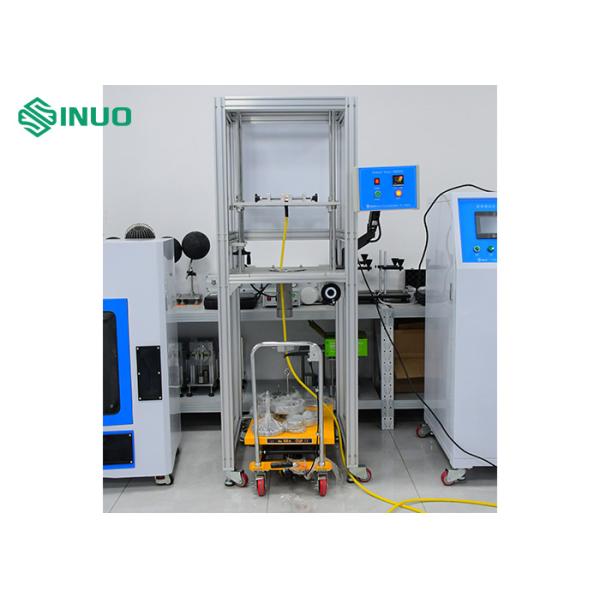

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

Product Information:

This Terminal Testing Machine is specially designed in accordance with IEC 62196-1:2022 clause 13.3.1, figure 12, and table 3. It is used to evaluate the strength, durability, and reliability of clamping screw terminals to ensure safe performance under normal operating conditions.

The equipment checks whether the screw terminal design prevents over-damage to the wire and withstands mechanical stress during normal use. With preset testing cycles, automatic stop, and alarm function, the tester provides accurate and efficient compliance testing for electrical accessories.

Key Features:

Conforms to IEC 62196-1:2022 requirements

Preset testing times (1~9999 cycles, default 150 times in 15 min)

Automatic stop with alarm when cycles are completed

Adjustable rotating weight from 0.4 to 70.3 kg

Rotating speed: (10 ± 2) r/min

Wide range of bushing hole diameters: 6.5mm to 44.5mm

Adjustable test height: 260–660mm

Robust design for long-term durability

Technical Parameters:
