YIMU YM210D Automatic Labeling Machine For Bag Card And Paper Ect. Flat Surface Label Applicator

Categories Bag Labeling Machine
Place of Origin: Shanghai, China
Brand Name: YIMU
Packaging Details: wooden case
MOQ: 1 SET
Model Number: YM210D
Certification: CE, SGS
Delivery Time: 15-20 Work Days
Type: LABELING MACHINE
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Advertising Company
Showroom Location: Canada, United States, Viet Nam, Philippines, Mexico, Thailand, Nigeria, Australia
Condition: New
Key Selling Points: Long Service Life
Application: Food, Beverage, Commodity, Chemical, Bags paging labeling with feeding collecting
Packaging Type: case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/110V, 220V/50Hz
Dimension(L*W*H): 3000(L)*1000(W)*1600(H) mm
Weight: 400 KG
Warranty: 2 years
Machinery Capacity: 40-100BPM
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years, 5 years
Core Components: PLC, Motor, Engine, Gearbox, PLC, Motor
Capacity: 0~200 Pieces/min
labeling error: <1mm
Suitable for: bag/paper
Suitable for product size: L30-800mm, W30-600mm
Labeling type: Flat Bag
Material: SUS 304
  • Product Details
  • Company Profile

YIMU YM210D Automatic Labeling Machine For Bag Card And Paper Ect. Flat Surface Label Applicator

The YM210D is a versatile labeling machine designed for flat, planar surfaces. Equipped with a specialized page separation function, this labeling machine can effortlessly handle a variety of materials, including paper bags, cards, and sheets. This makes the YM210D a highly adaptable solution for a wide range of labeling applications across diverse industries. Its customizable nature allows for tailored configurations to meet specific customer needs, ensuring a perfect fit for your unique labeling requirements.


Applications


Product Detail


1. Precise and Stable
  • It's equipped with automatic pneumatic suction cup bag feeding system for precise feeding and controllable speed.

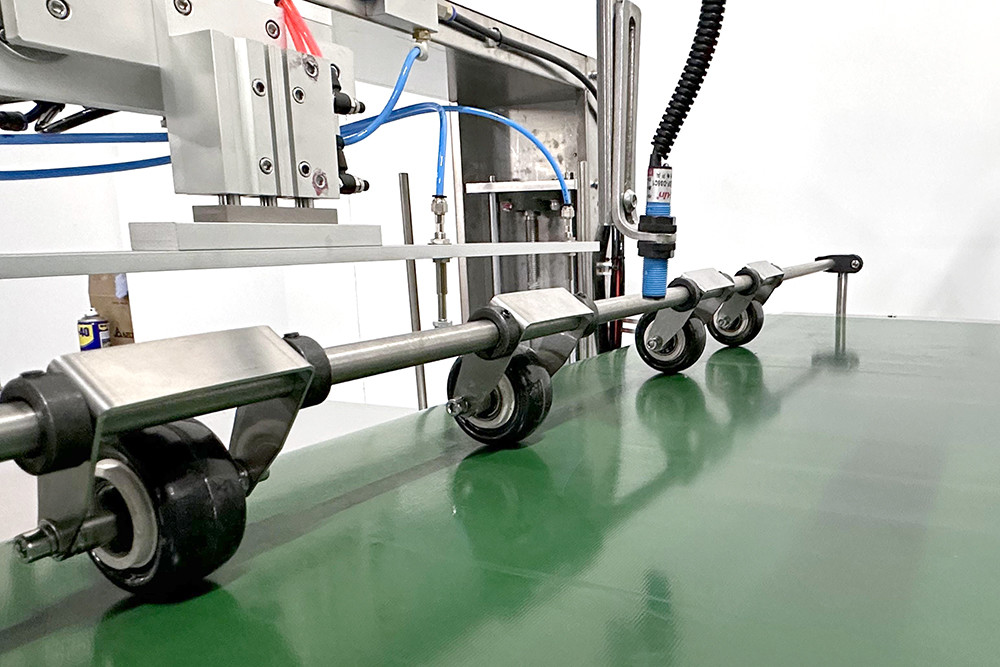

  • The compacting device, consisting of four wheels, ensures the bag smooth and stable on the conveyor .

2. Intelligent and Safe

  • The feeding platform can accommodate thousands of bags at once. The sensor detects changes of the bags quantity and automatically adjusts the platform's height.
  • When no bags be detected on the platform, it will automatically lower to the bottom and alert you to replenish bags.
3. Flexible and Easy to Use
  • The labeling speed is controlled by a PLC, allowing for easy adjustment and achieving millimeter-level accuracy.
  • The labeling head can be adjusted in four directions.It is suitable for bags of various sizes.
Parameters

1
Model
YM210D
2
Suitable for bag length
100-700mm
3
Suitable or bag width
100-500mm
4
Suitable for label length
20-300mm
5
Suitable for label width
20-180mm
6
Bag storage
100-300PCS
7
Labeling speed
20-200PCS/min
8
Power
700W, 220V, 1phase,50-60Hz
9
Label reel outer diameter
Max 380mm
10
Label reel inner diameter
40mm or 76mm
11
Machine net weight
300KG
12
Machine dimension
L2500*W750*H1750mm
