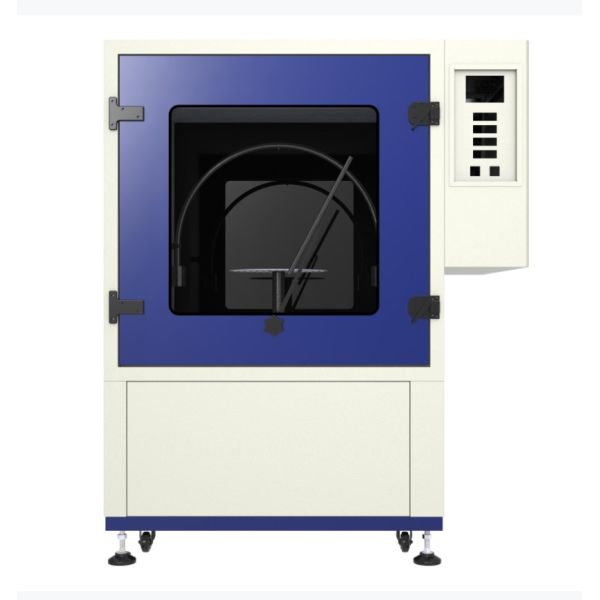

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard
1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard
Categories Sand&Dust Test Chamber
Brand Name: Envsin
Model Number: ESC1000
Certification: CE and ISO
Place of Origin: China
MOQ: 1
Price: To Be Negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 per month
Delivery Time: 30-35 business days after received the payment
Packaging Details: Well packed in strong wooden case suitable for all types of long distance shipment
Product name: Sand And Dust Test Chamber
Volume: 1000L
Standard: IP5X IP6X
Internal Size: 1000×1000×1000mm
External Size: 1120mmx1230mmx1860mm
Temp. Range: RT+10℃～80℃
Test time: 0～999H59M59S, set continuous,cycle blowing dust
Sand and dust concentration: 2g / m ³～10g / m ³
Dust: Arizona dust A1
Dust vibration: 0 ～ 999H59M59S Arbitrary set,vibration time and rest time alternate progress
Dust airflow: 0.5～15m /s adjustable
Interior material: SUS304 Stainless steel
Contact Now
  • Product Details
  • Company Profile

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard

1000L Steel Blowing Sand And Dust Test Chamber With IEC Standard ​​​
The IP5X / IP6X sand and dust test chamber is used to simulate the natural environment or human factors designing IP5X and IP6X
protection class of sand and dust test. Applicable to the testing for seal performance of electronic products, vehicle parts,components,
other seals and other mechanical and electrical equipment during storage, transport under sand and dust condition.IP5X / IP6X sand and
dust test chamber conform to IEC60529,GB4208,ISO20653and other standards.

Structure:

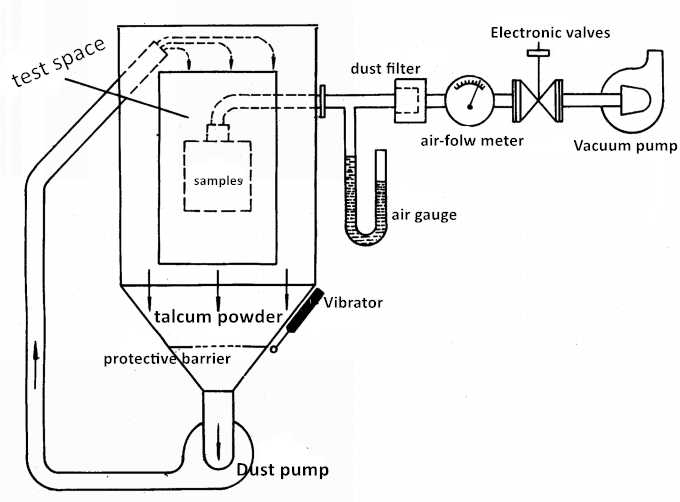

System structure diagram



Structure Mode:
  • Monolithic construction. Working space is main body.Control cabinet is in the right side:build-in electric control device and operator panel device.
  • Sand and Dust Test Chamber’s back and bottom part set electrical cabin:build-in vacuum unit,dust pump and Dust vibrator.Internal working space: Vacuum interface device,dust heater,sample shelf, dust circulating air duct, door and so on.
Composition:
Exterior material: Both sides static coated cold rolled steel
Interior material: SUS304 Stainless steel
Insulation material: Rigid polyurethane
Specifications:
Model:Sand and dust test chamberESC500ESC800ESC1000ESC1500
Sample holder Dimension (mm)785*785790*990980*980980*1480
Test Space Dimension (mm)8008800880080081000*10001000*1000*10001000*1500*1000
Temp. Range (C°)RT +20~+80 adjustable

Selective Dustproof

IP5X (Dustproof Test, increase or no negative pressure)

IP6X (Seal Test, increase negative pressure)

StandardsGB4208-2008 / IEC60529:2001
PowerAC230V ±10%, 50HZ, 3/N/PE
Options Accessories:Standard Version:

Independent sensors for protection (NE60519-2.1993)

1 Stainless steel shelve
Entry ports for testing space1 Screen sieve
Power outlets for specimens
Spare parts package
E-management and cyber-software
APP for mobility management
Sand testing medium
Dust testing medium

More Details:
1. Chamber door:
  • Single door with hinges
  • Alloy button knob
  • Large size glass window
  • Manual scraping cleaners

2.Sample shelves

  • Chamber’s bottom part:Stainless steel grid sample racks Carrying.

3. Heater4. Vacuum interface
  • Fins alloy electric heater,heating sand and dust to dehumidify.
  • Metal thread locking type vacuum interface for easy connection between tube and test samples.
5. Cycling dust channels6. Control cabinet
  • Metal thread locking type vacuum interface for easy connection between tube and test samples.
  • Mini Control cabinet is at the right side of working room, with lock type door butt plate.
  • Build-in electrical device, controller, driver and so on.
  • Control panel is in front of cabinet.

7. Control panel
8. Vacuum unit
  • Human-Computer Interaction display screen
  • Power switch,emergency stop switch and alarm device
  • Mechanical vacuum pump,Pressure sensing device,Gas Flow meter,Pressure regulating valves and air filter

9. Bottom dust emission10. Sand and dust moving device
  • In the bottom of chamber,drawer model dust emission box,to collect and replace sand and dust.
  • In circulation channel ,raise dust pump blows sand in cycle operation .
  • In return dust port,dust vibration pump is to prevent sand and dust’s precipitation and condensate.


6. Control cabinet
