| Categories | Marine LiFePO4 Battery |
|---|---|
| Brand Name: | Ecolite/OEM/ODM |
| Certification: | UN38.3 MSDS |
| Place of Origin: | China |
| MOQ: | 50 |
| Price: | Inquiry |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500000 |
| Delivery Time: | 1-2 months |
| Packaging Details: | Carton Pallet Container |
| Battery Voltage: | 76.8V |
| Battery Nominal Capacity: | 150Ah |
| Rated Energy: | 11520Wh |
| Inner Resistance: | ≤30mΩ |
| Self Discharge: | <3% per Month |
| Cell Series/Parallel: | 24S/1P |
| Product Class: | IP54 |
| Coummunication Protocol: | Bluetooth |
| Cell Type-Chemistry: | Lifepo4 Cell |
| Charge Temperature: | 0℃ to 55℃ |
| Battery discharge Temperature: | -20℃ to 60℃ |
| Battery scenario: | Marine LiFePO4 Battery |
LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.
Maine battery Features
◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low
temperatures
Performance
Long Cycle Life >4000cycles,Remaining capacity
>80%@25℃,0.5C/0.5,100%DOD.
High Denisity,High Discharge Current,High Temperature Range,Low
weight, Free Maintenance.
Fast Charging.
Environment Friendly.
Product Application
Our Marine LiFePO4 battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched lithium battery system.
Products Specification
| Electrical Parameters | |
| Marine battey Voltage | 76.8V |
| Battery Capacity | 150Ah |
| Nominal Energy | 11520Wh |
| Resistance | ≤30mΩ |
| Efficiency | ≥0.98 |
| Cycle Life | ＞4000cycles@0.5C,80％ DOD |
| Self Discharge | ＜3％ per Month |
Max Cell in Series/Parallel | 24S/1P |

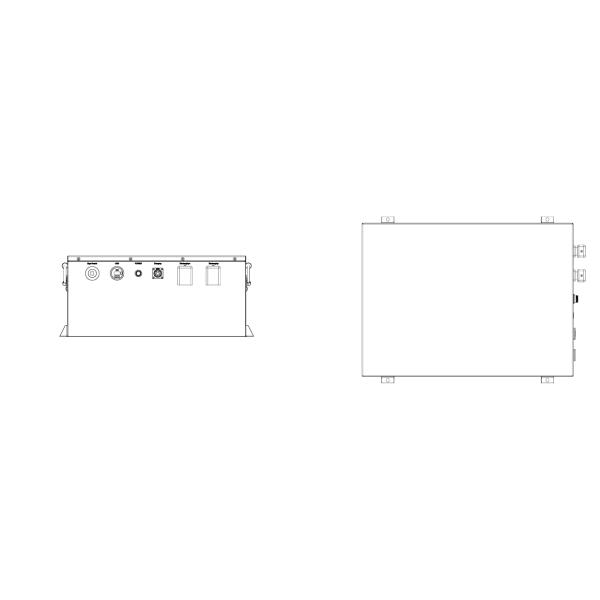

| Mechanical Parameters | |
| Dimension(LxWxH) | 660x450x231mm |
| Dimension(LxWxH) | 25.98x 17.72x 9.09 |
| Weight | 97Kg |
| Terminal Type | M8 |
| Battery Housing | SPCC |
| Housing Protection | IP54 |
| Cell Type-Chemistry | LiFePO4 Cell |
| Communication | Bluetooth |
| Discharge Parameters | |
| Continuous Discharge Current | 200A |
| Pulse Discharge Current | 600A (<500ms) |
| Recommended Volt. Disconnect | 60V |
| BMS Discharge Cut-off Voltage | 60V |
| Reconnect Voltage | 64.8V |
| Short Circuit Protection | 100-300us |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 85.2~87.6V |
| Recommended Float Voltage | 79.8~80.4V@100% |
| Recommended Charge Current | / |
| Maximum Charge Current | 50A |
| BMS Charge Cut-off Voltage | 88.8V |
| Temperature Parameters | |
| Battery discharge Temperature | -20℃ to 60℃ |
| Charge Temperature | 0℃ to 55℃ |
| Storage Temperature | 0℃ to 35℃ |
| BMS High Temperature Cut-off | 65℃ |
|
